Mini-Split Installation: Demystifying the Process and Costs

What You Need to Know About Ductless Heat Pump Installation

A ductless heat pump installation is a streamlined way to heat and cool your home without bulky ductwork. Also known as a mini-split, the system uses an outdoor unit, one or more indoor units, and a small conduit containing refrigerant lines to transfer heat. For heating, it pulls warmth from the outside air and moves it inside. For cooling, it reverses the process, moving indoor heat outside.

This method is highly efficient. Traditional ducted systems can lose over 30% of their energy through leaks, but ductless systems deliver air directly into the room, minimizing waste. Top-tier ductless units can achieve SEER2 ratings up to 35, far surpassing the 15.2-25 range of typical ducted heat pumps.

Key Installation Steps:

• Site assessment: Evaluating your home's layout and needs.
• Unit placement: Mounting the indoor air handler(s) and placing the outdoor condenser on a pad or bracket.
• Line set connection: Running refrigerant and electrical lines through a small, 3-inch wall opening.
• System testing: Verifying leak-free, proper operation.

These systems provide year-round comfort, with some models operating in temperatures as low as -22°F, making them ideal for Metro Atlanta's varied climate.

Understanding Ductless Heat Pumps Before You Install

Ductless heat pumps, or mini-splits, offer an efficient alternative to traditional HVAC. They consist of an outdoor compressor/condenser and one or more indoor air-handling units, connected by a conduit containing power and refrigerant lines. This design avoids the need for costly and inefficient ductwork.

When planning a ductless heat pump installation, you'll choose between a single-zone system (one indoor unit per outdoor unit) for a specific area, or a multi-zone system. Multi-zone setups connect up to eight indoor units to one outdoor unit, each with its own thermostat for customized comfort in different rooms. With proper maintenance, these systems have an impressive lifespan of 15 to 30 years.

One of their biggest draws is energy efficiency. By delivering conditioned air directly, they avoid the 30%+ energy loss common in leaky ductwork. This efficiency is measured by SEER2 (cooling) and HSPF2 (heating) ratings. Ductless systems can reach a SEER2 of 35, significantly higher than the 15.2-25 SEER2 range for ducted heat pumps. For more details, see our article on the Benefits of a Mini Split Heat Pump.

Advantages and Disadvantages

Advantages:

• Zoned Comfort: Control temperatures independently in each room or zone.
• No Ductwork Needed: Ideal for homes without existing ducts, additions, or historic properties.
• Energy Savings: Eliminating duct losses and using zoning can significantly lower utility bills.
• Installation Flexibility: Indoor units can be placed on walls, floors, or ceilings, requiring only a small three-inch hole for connections. Learn more about Why Ductless Mini Splits Are a Good Choice for Homes.

Disadvantages:

• Upfront Cost: The initial investment can be higher than some traditional systems, though energy savings and rebates often provide a long-term return.
• Aesthetics: Some homeowners dislike the look of the visible indoor units, though many modern, sleek designs are available.
• Sizing Requirements: The system must be professionally sized for your space to operate efficiently and avoid issues like short-cycling.

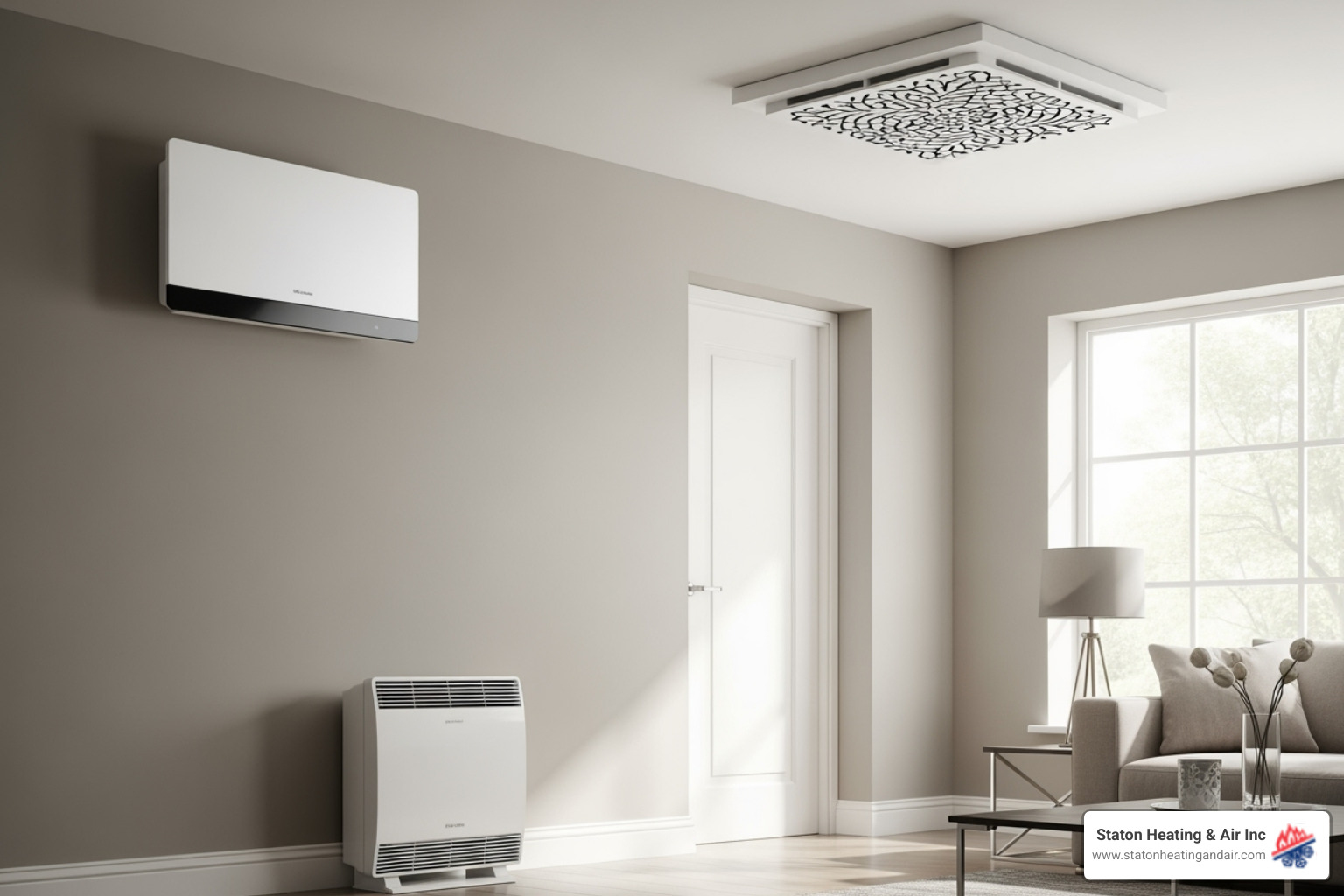

Types of Indoor Units

• Wall-mounted units: The most common type, installed high on a wall for effective air distribution.
• Floor-mounted units: Placed low on the wall, similar to a radiator, and useful when wall space is limited.
• Ceiling cassettes: Recessed into the ceiling with only a grille visible, offering a discreet solution.
• Concealed duct units: Hidden in a ceiling or wall, using short ducts and vents for a traditional look with ductless efficiency.

Explore options in our article on Ductless AC Solutions for Every Room.

Key Energy Efficiency Ratings to Look For

When selecting a system, focus on these key ratings to maximize savings:

• ENERGY STAR® certification: This guarantees the unit meets strict EPA efficiency guidelines. You can Find certified mini-split heat pumps online.
• SEER2 (Seasonal Energy Efficiency Ratio 2): Measures cooling efficiency. Higher is better.
• HSPF2 (Heating Seasonal Performance Factor 2): Measures heating efficiency. Higher is better.
• EER2 (Energy Efficiency Ratio 2): Measures efficiency under peak load conditions.

Choosing a unit with high ratings is a smart investment. We can help you steer these options in our Ductless HVAC Units Cumming GA services.

Breaking Down Ductless Heat Pump Installation Costs

Understanding the investment for a ductless heat pump installation is key. While every project is unique, costs are determined by a few main components: the equipment itself, professional labor, and any required permits.

Higher-efficiency units cost more upfront but deliver long-term savings. Labor costs reflect the expertise of NATE-certified technicians who ensure a safe and correct installation. The brand and quality also play a role, with premium models offering advanced features. We can help you find the right balance for your budget and comfort needs with our Heat Pump Installation Cumming GA services.

Factors Influencing Your Ductless Heat Pump Installation Cost

Several factors determine the final cost of your ductless heat pump installation:

• System size (BTUs): Larger or poorly insulated spaces require more powerful (and thus more expensive) units. We perform detailed load calculations to ensure proper sizing.

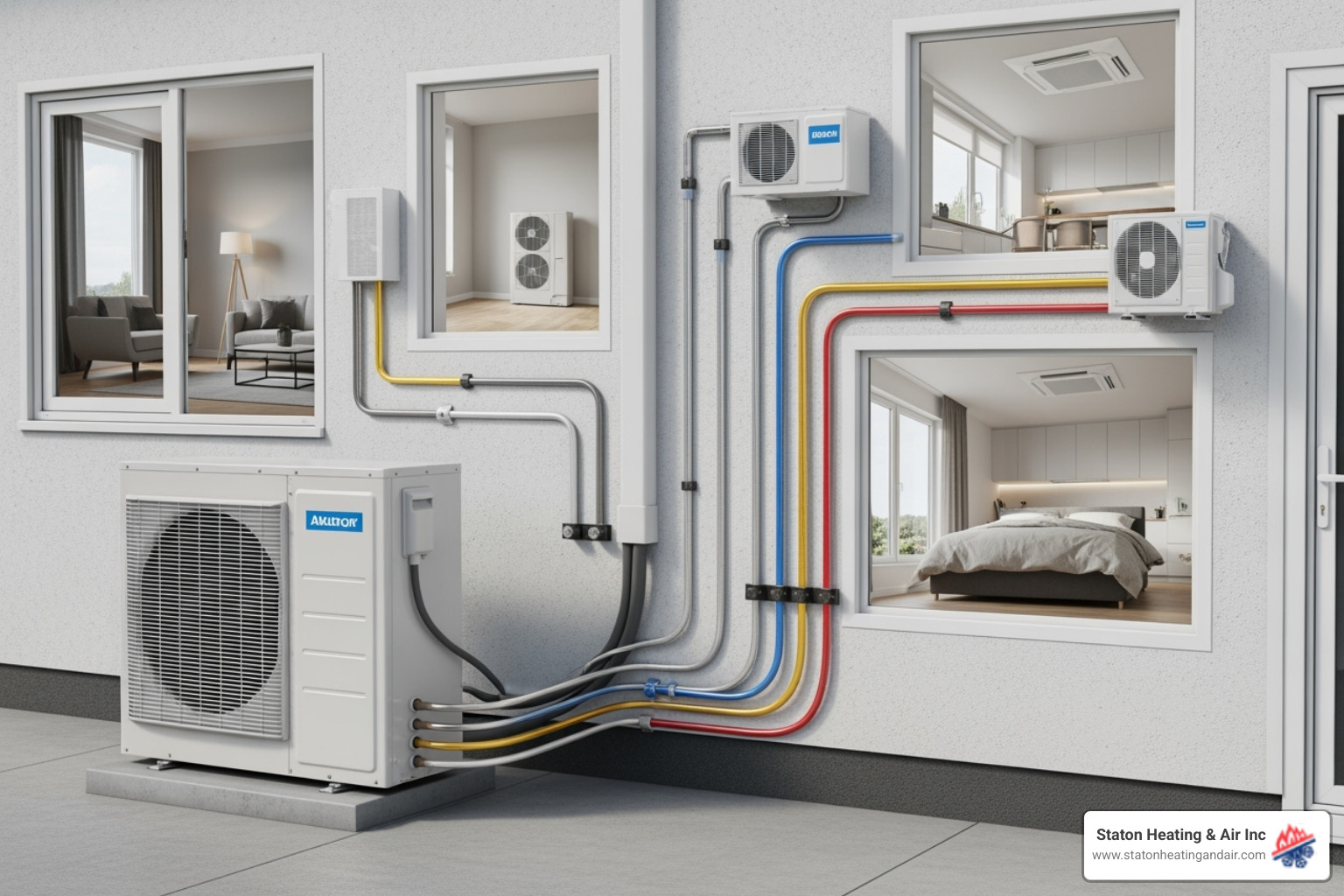

• Number of zones: A single-zone system is less expensive than a multi-zone system that conditions several rooms, as each additional indoor unit adds to the cost. Learn more about Mini Split Zoning for Optimal Comfort.
• Installation complexity: Simple installations are more affordable. Complex jobs involving long refrigerant lines, multiple floors, or difficult access points will increase labor costs.
• Home's layout: Historic homes with thick walls or unique architectural features can add complexity and cost to the installation.
• Electrical work: Ductless systems require dedicated circuits. Older homes may need an electrical panel upgrade to safely support the new equipment.

Government Rebates and Incentives

Great news! Rebates and incentives can significantly lower your ductless heat pump installation cost.

• Federal tax credits: Often available for qualifying high-efficiency equipment, directly reducing your tax liability.
• Local utility rebates: Many Metro Atlanta utility companies offer cash rebates for installing energy-efficient heat pumps.
• Manufacturer promotions: Seasonal deals and special financing can reduce upfront costs.

Use the Explore potential savings with the ENERGY STAR tool to find incentives in your area. Combining rebates with long-term energy savings makes a ductless system a smart financial decision. Read more on the Advantages of Investing in Heat Pump System.

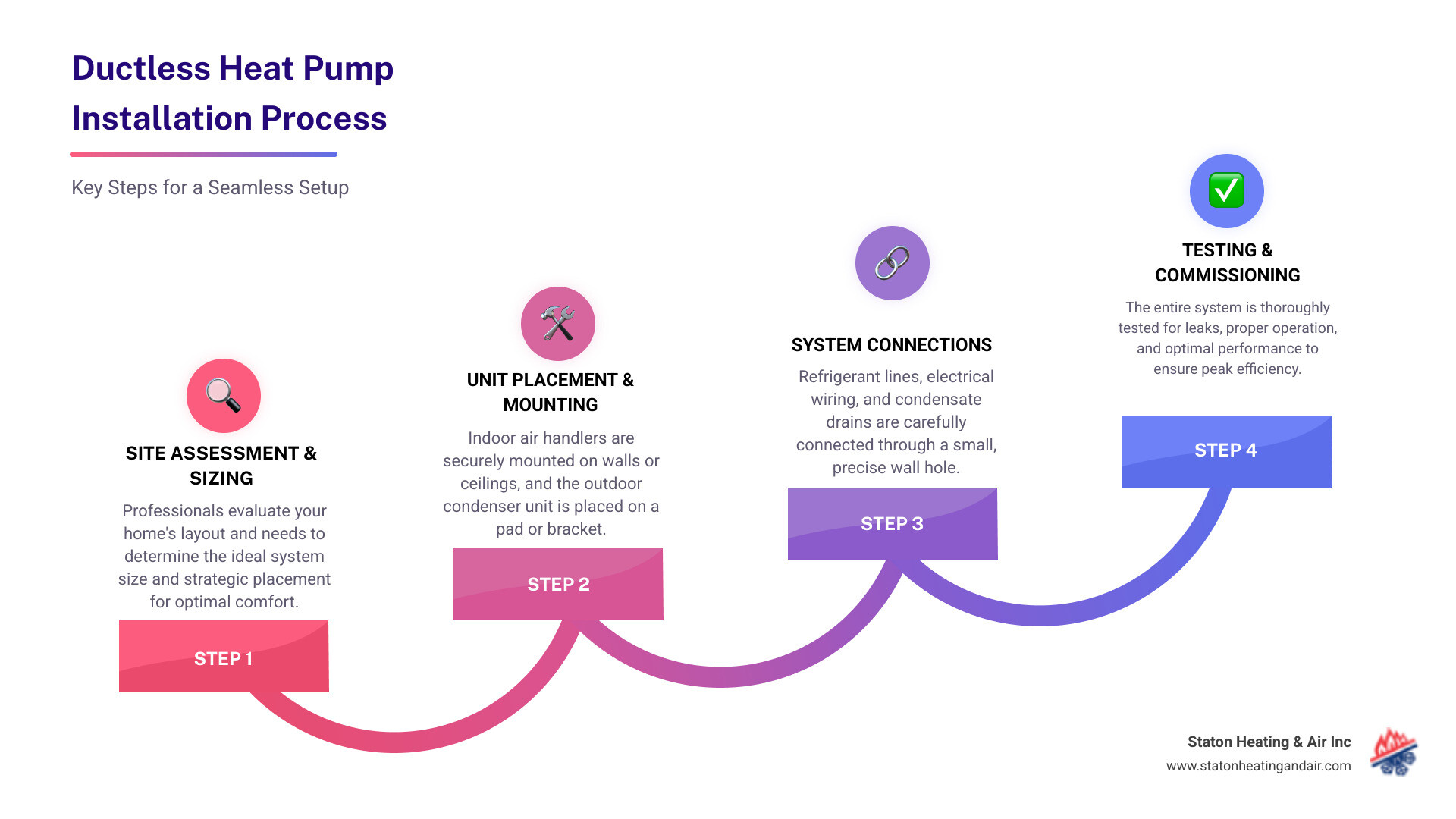

The Professional Ductless Heat Pump Installation Process: Step-by-Step

A ductless heat pump installation requires precision and expertise. It involves specialized tools and knowledge of refrigeration and electrical codes, making it a job for certified professionals.

The process begins with a thorough site assessment, where our NATE-certified technicians evaluate your home's layout, insulation, and electrical system. We perform crucial sizing calculations to determine the right BTU capacity for your space, ensuring optimal efficiency. This planning phase is detailed in our guide on Mini Split Installation Steps.

Placement and Mounting of Units

Strategic placement is critical for performance and aesthetics in your ductless heat pump installation.

• Indoor Unit Location: We select the best spot for the air handler, typically high on an exterior wall, considering airflow, accessibility for filter cleaning, and potential thermostat conflicts.
• Outdoor Unit Placement: The condenser needs a stable, level surface with clear space for airflow, away from windows or high-traffic areas. It can be placed on a concrete pad or a wall-mounted bracket to protect it from debris and moisture. Find creative ideas in our article on Space Saving Mini Split Solutions for Your Property.

Connecting the System

Once units are mounted, our team makes the connections that bring the system to life.

• Conduit Hole: A small, three-inch hole is drilled through the exterior wall to pass the line set through.
• Line Set and Wiring: The insulated refrigerant tubing and electrical/communication wires are run from the indoor unit to the outdoor unit. We often use a protective cover for a clean finish.
• Refrigerant Lines: This critical step requires specialized tools. Lines are connected, pressure-tested for leaks, and then a vacuum is pulled to remove all air and moisture, which is vital for efficiency and longevity.
• Condensate Drain: A drain line is installed to safely route condensation from the indoor unit away from your home.
• System Testing: We conclude every Heat Pump Installation Milton Alpharetta Cumming GA by thoroughly testing all functions to ensure your system is operating at peak performance.

Why Professional Ductless Heat Pump Installation is Crucial

While DIY is tempting, a ductless heat pump installation should be left to the pros. Here’s why:

• Expertise: Our NATE-certified technicians have the training to handle complex installations safely and correctly.
• Proper Sizing: Professionals perform load calculations to ensure your system isn't too big or too small, which is key for efficiency and lifespan.
• Refrigerant Handling: Only EPA-certified technicians can legally and safely handle refrigerants.
• Code Compliance & Safety: We ensure your installation meets all local building and electrical codes, protecting your home and family.
• Warranty Protection: Most manufacturers require professional installation to keep your warranty valid.

Professional installation guarantees peace of mind and optimal performance. Learn more about Comfort with Heat Pump Installation.

Post-Installation: Choosing and Maintaining Your System

Your professional ductless heat pump installation is complete, but our partnership in your comfort continues. To get the most from your investment, it's helpful to understand why your specific system was chosen and how to keep it running smoothly.

Why Your System is the Right Fit

The system we installed was carefully selected based on key factors to ensure optimal performance. We considered your home's size and layout, the demands of the Metro Atlanta climate, your budget, and any desired features like smart controls or advanced filtration. This custom approach is crucial for efficiency and comfort. For more on the selection process, see our guide on how to Choose a Mini Split AC for Your Home.

Ongoing Maintenance Requirements

Ductless heat pumps are refreshingly low-maintenance. Following these simple steps will ensure your system remains efficient and reliable for years to come.

• Clean Filters Regularly: This is the most important task for homeowners. Simply remove the indoor unit's filters every few weeks, rinse them with water, let them dry, and slide them back in. This maintains air quality and efficiency.
• Keep the Outdoor Unit Clear: Ensure the area around the outdoor condenser is free of leaves, grass, and debris that could obstruct airflow.
• Schedule Professional Maintenance: An annual tune-up from our team is the best way to protect your investment. We perform a comprehensive check of refrigerant levels, electrical connections, and coils to catch any potential issues early. Explore our Heat Pump Maintenance Cumming GA services for peace of mind.

Should you ever need assistance, we are always ready to help with Ductless AC Repair Milton Alpharetta Cumming GA.

Frequently Asked Questions about Ductless Installation

We get a lot of questions about ductless heat pump installation. Here are answers to some of the most common ones.

How long does a ductless heat pump installation take?

The timeline depends on the system's complexity. A typical single-zone system can usually be installed by our NATE-certified technicians in 4 to 8 hours. This includes mounting both units, connecting the lines, and testing the system.

A multi-zone system with several indoor units will naturally take longer, often requiring a full day or two, depending on the number of zones and the layout of your home.

Can a ductless system heat and cool my entire house?

Yes, absolutely. While single-zone systems are great for individual rooms, a professionally designed multi-zone ductless system can effectively heat and cool your entire home. By strategically placing indoor units in different areas, all connected to a single outdoor unit, you can achieve comprehensive climate control.

The key benefit is zoned heating and cooling. You can set different temperatures for different rooms, which improves comfort and saves energy by not conditioning unused spaces.

How long do ductless heat pumps last?

A well-maintained ductless heat pump is a long-term investment. With proper installation and regular maintenance, you can expect your system to last 15 to 30 years.

The lifespan depends on the quality of the unit and, most importantly, consistent care. Simple tasks like cleaning the filters and scheduling annual professional tune-ups are crucial for maximizing the longevity and performance of your system, ensuring it provides reliable comfort for decades.

Your Partner for Expert Installation in Metro Atlanta

Choosing a ductless heat pump is a smart investment in your home's comfort and efficiency. However, the performance of this advanced technology hinges on one critical factor: proper installation. A professional ductless heat pump installation ensures your system operates at peak efficiency, provides consistent comfort, and achieves its maximum lifespan of up to 30 years.

This is not a DIY project. It requires precise sizing calculations, certified refrigerant handling, and adherence to all electrical and building codes to ensure safety and performance. For homeowners in Cumming, GA, and the surrounding Metro Atlanta area, trusting certified professionals is the only way to guarantee your system runs perfectly from day one.

At Staton Heating & Air Inc., we've been your neighbors since 1972, operating under the motto "Where customers come first!" Our NATE-certified technicians bring decades of experience to every job, and we are proud to be named 2024's Best HVAC Company in Cumming. This award reflects our unwavering commitment to quality and customer satisfaction.

We treat every home with the care we'd want for our own families. Let us bring unparalleled comfort to your home with an expert installation you can trust.

For professional advice and service that puts you first, Contact us for your ductless AC installation in Milton, Alpharetta, or Cumming, GA. We're ready to make your home the comfortable sanctuary it should be.
