Go Green, Stay Warm: Your Guide to High-Efficiency Furnace Installation

Why High-Efficiency Furnace Installation Matters for Your Home

A high efficiency furnace installation replaces your old heating system with a modern furnace that converts 90% or more of its fuel into heat. This upgrade can lower your energy bills by 10-20%, provide more consistent temperatures, and reduce your carbon footprint. These furnaces have an AFUE rating of 90% or higher, a lifespan of 15-20 years, and can save you $120-$200 annually.

With heating and cooling making up about half of a Metro Atlanta home's energy use, upgrading is a smart move. Today's high-efficiency furnaces are significantly more efficient than older models, but the quality of your installation is just as important as the unit itself.

Studies show that improper installation can reduce a new furnace's performance by up to 30%. This guide explains what goes into a proper high efficiency furnace installation so you can make an informed decision for your home.

Understanding High-Efficiency: AFUE, BTUs, and How They Work

Understanding what makes a furnace "high-efficiency" helps you see why upgrading is a smart choice for your budget and comfort.

What is AFUE and Why Does It Matter?

AFUE, or Annual Fuel Utilization Efficiency, is a percentage that shows how much fuel is converted into heat for your home. An 80% AFUE rating means 80 cents of every dollar spent on fuel warms your home, while 20 cents are lost as exhaust. The minimum standard is 80% AFUE, but high-efficiency models are rated at 90% AFUE or higher, with top units reaching 98-99%.

The FTC's mandatory EnergyGuide label clearly displays the AFUE rating, making it easy to compare models. A higher AFUE means less energy waste and more money in your pocket. You can learn more about The official EnergyGuide label explained.

How a High-Efficiency Furnace Works Differently

High-efficiency furnaces use smarter engineering to extract more heat from fuel. Unlike older models with constantly burning pilot lights, they use electronic ignition that only activates when heat is needed. They also feature sealed combustion, drawing air from outside instead of using the pre-heated air inside your home.

The key innovation is a secondary heat exchanger. It captures additional heat from exhaust gases that would normally escape. This process cools the gases enough to cause condensation, releasing even more usable heat. This is why they are often called "condensing furnaces."

Many units also have variable-speed blower motors that adjust their speed to meet your home's heating needs. Instead of blasting at full power, they run at lower speeds for longer periods, creating more even temperatures, eliminating cold spots, and operating more quietly while using less electricity. These technologies work together to make modern furnaces highly efficient. You can read more about the benefits of a high-efficiency furnace to see how these features translate into real-world advantages.

Sizing Your Furnace: What is a BTU?

BTU, or British Thermal Unit, measures a furnace's heating power. A 100,000 BTU furnace with a 95% AFUE rating delivers 95,000 BTUs of heat to your home.

Proper sizing is critical; bigger isn't better. An oversized furnace will short-cycle, turning on and off frequently. This wastes fuel, causes extra wear, and leads to uneven temperatures. An undersized furnace will run constantly without being able to keep your home warm, leading to high bills and premature failure.

Residential furnaces typically range from 40,000 to 120,000 BTUs. The right size depends on more than just square footage. Our NATE-certified technicians perform a professional heat loss calculation, evaluating your home's insulation, windows, ductwork, and local climate to ensure your new high efficiency furnace installation is perfectly matched to your home. For more on the measurement, the U.S. Energy Information Administration explains BTU.

The Core Benefits of Upgrading Your Home

Upgrading to a high-efficiency furnace is about more than just replacing an old appliance. It's an investment that improves your home's comfort, lowers your energy spending, and reduces your environmental impact.

Long-Term Energy Savings

Investing in a high efficiency furnace installation means lower utility bills for the next 15-20 years. Upgrading from an older 70% AFUE furnace to a 95% AFUE unit significantly reduces fuel consumption. Homeowners in Metro Atlanta typically see savings of 10% to 20% on their heating costs.

Since heating and cooling account for about half of home energy use, according to Data on home energy consumption, these savings are substantial. The U.S. Department of Energy estimates that an Energy Star-rated furnace can save you hundreds of dollars over its lifetime.

Improved Home Comfort

High-efficiency furnaces excel at providing consistent comfort. Variable-speed blower motors run continuously at lower speeds, circulating warm air gently and eliminating cold spots and drafts. This results in even temperatures in every room.

Many models also feature two-stage heating, using a low setting on milder days and a high setting for colder weather. This longer, lower-capacity operation creates a more comfortable environment. These systems are also much quieter due to their sealed combustion design and variable-speed motors. As a bonus, the constant air circulation improves indoor air quality by continuously filtering dust and allergens. Learn how the right installation provides comfort in ways that go beyond just temperature.

Financial Incentives and Rebates

Financial incentives can make your investment even smarter. The federal government offers tax credits for energy-efficient home improvements, which can cover a portion of the installation cost. You can find the latest details at Information on federal tax credits for energy efficiency.

Many local utility companies in Georgia also offer rebates for upgrading to energy-efficient equipment. We can help you find available programs in your area. Furthermore, a modern, efficient heating system can increase your home's value. A high efficiency furnace installation is a smart investment that pays back in multiple ways.

The Professional High-Efficiency Furnace Installation Process

A high-efficiency furnace is only as good as its installation. Improper work can reduce performance by up to 30%, negating the energy savings and comfort you expect. This is why choosing NATE-certified professionals is crucial.

At Staton Heating & Air Inc., we've served Metro Atlanta since 1972 with a "house-as-a-system" approach. We understand that your furnace, ductwork, and insulation all work together. To learn more, explore What to expect from your HVAC installation.

Step 1: Pre-Installation Assessment in Your Existing Home

A thorough assessment is the first step. We don't just swap boxes; we evaluate your home's unique needs.

This starts with a professional heat load calculation, an engineering analysis that considers your home's design, insulation, windows, and local climate. This ensures the furnace is sized correctly—not too big or too small.

Next is a ductwork inspection, where we measure External Static Pressure (ESP) to check for proper airflow. High-efficiency furnaces need adequate airflow, and leaky or undersized ducts can hinder performance. We identify any necessary modifications, such as sealing joints or resizing sections.

Finally, we evaluate your mechanical room layout for accessibility, venting pathways, and electrical and gas line locations. This upfront planning ensures a smooth installation. This detailed assessment is what separates a professional high efficiency furnace installation from a rushed job. Learn more about Why professional HVAC installation matters.

Step 2: Key Steps in a High-Efficiency Furnace Installation

Once the assessment is done, our NATE-certified technicians begin the installation with precision and expertise.

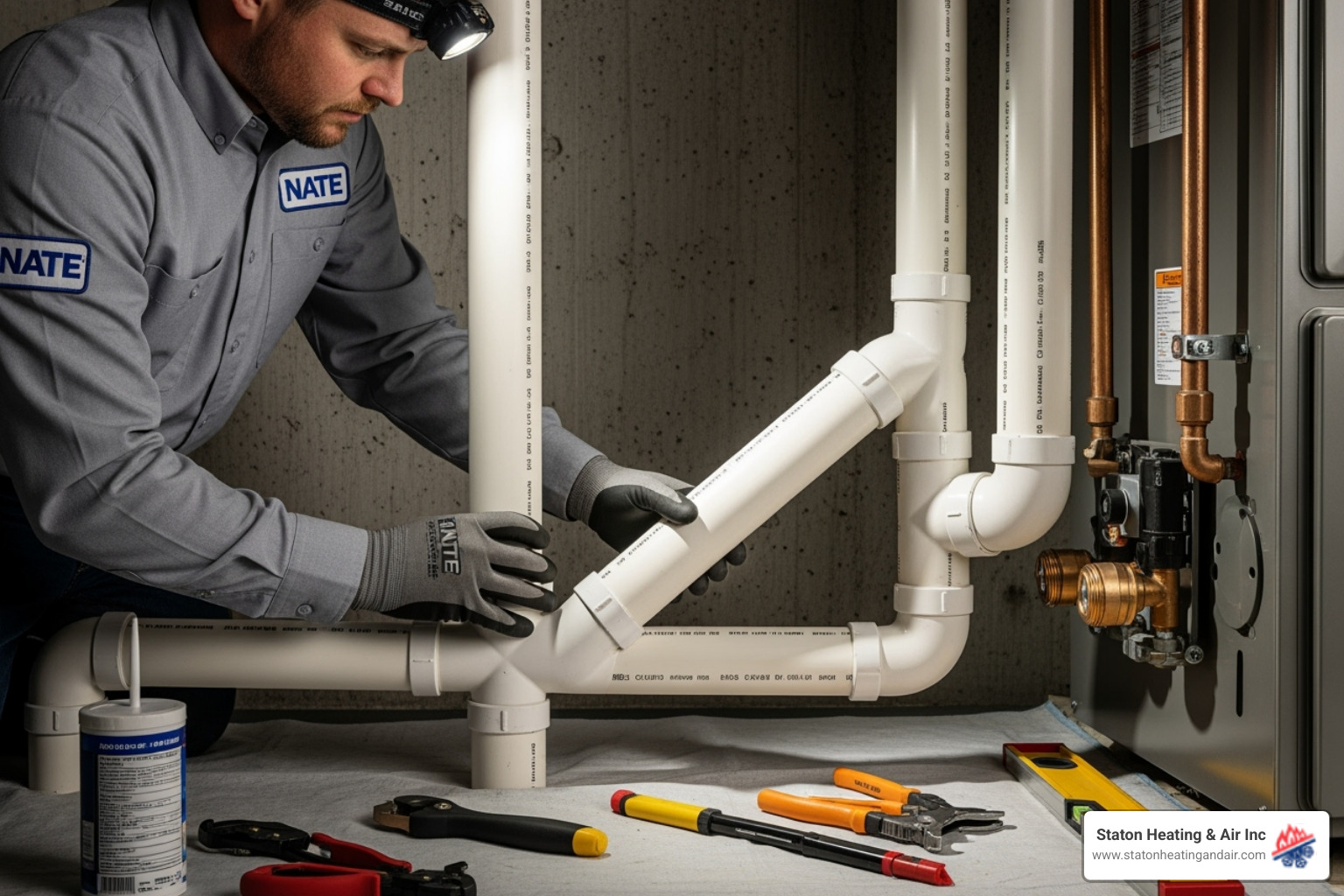

First, we safely remove your old unit. Then, we install the PVC venting. High-efficiency furnaces produce cooler exhaust and condensate, requiring specialized PVC pipes for both air intake and exhaust. These are routed to the outside and sealed to maintain your home's integrity.

A condensate drain line is also essential to safely channel water created during the condensing process to a drain or pump. Proper sloping prevents corrosion and ensures reliable operation.

Our technicians handle all gas and electrical connections according to strict safety codes. Finally, we perform the thermostat integration. A modern thermostat is needed to control the advanced features of a high-efficiency furnace. We ensure it's correctly wired and programmed, running new wires if necessary.

Step 3: Commissioning and Final Checks

The installation isn't complete without commissioning—a vital step to verify performance. We systematically check and adjust the new system to meet manufacturer specifications.

This includes:

• Verifying gas pressure for safe and efficient combustion.
• Checking the temperature rise to ensure proper airflow.
• Re-checking External Static Pressure to confirm ductwork performance.
• Performing a combustion analysis for clean and efficient fuel burning.
• Testing all heating cycles and safety controls.

We conclude with a homeowner walkthrough, showing you how to operate your new system, explaining maintenance like filter changes, and answering your questions. This meticulous process ensures your high efficiency furnace installation delivers maximum comfort and savings from day one.

Post-Installation: Maintenance and Lifespan

After your high efficiency furnace installation, proper care ensures long-term comfort and savings. Regular attention will keep your new system performing at its best.

Essential Maintenance for Optimal Performance

Protecting your investment involves simple homeowner tasks and comprehensive professional care.

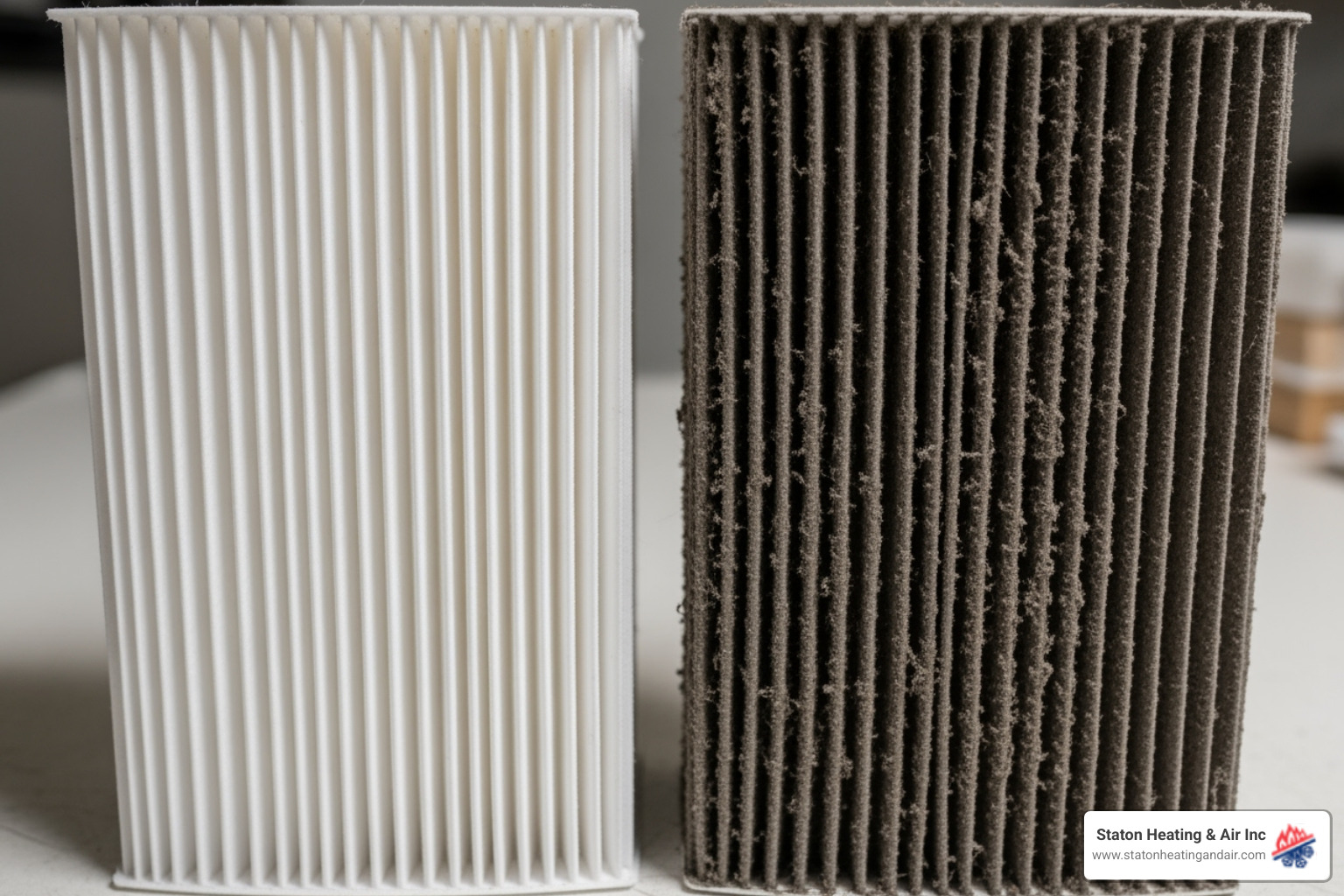

As a homeowner, your most important job is changing the furnace filter regularly. A clogged filter restricts airflow, forcing the system to work harder, which wastes energy and can cause damage. Check your filter monthly and replace it every one to three months. Also, ensure all air vents are clear of obstructions like furniture or rugs.

Professional annual maintenance is crucial for safety and longevity. Each fall, our NATE-certified technicians perform a comprehensive tune-up. This includes safety checks for gas leaks and carbon monoxide, cleaning internal components like the blower and burners, inspecting electrical connections, and cleaning the condensate drain line. We also perform a combustion analysis to fine-tune fuel efficiency. These visits catch small issues before they become major problems. Learn more about Understanding the importance of heater maintenance and repair.

What is the Lifespan of a High-Efficiency Furnace?

The typical lifespan of a well-maintained high-efficiency furnace is 15 to 20 years. Two factors are critical to reaching and exceeding this lifespan.

First, quality installation is paramount. A correctly sized and commissioned furnace operates with less stress, reducing wear on components. Our meticulous installation process is designed to protect your investment for decades.

Second, regular maintenance is essential. Annual professional tune-ups keep components clean and calibrated, preventing premature wear and extending the equipment's life. Today's sophisticated systems benefit greatly from expert care to deliver reliable, efficient heating for many years.

Frequently Asked Questions about High-Efficiency Furnaces

As you consider a high-efficiency furnace, you likely have questions. Here are answers to some of the most common inquiries we receive from homeowners in Metro Atlanta.

What are the different types of high-efficiency furnaces?

High-efficiency furnaces (90%+ AFUE) differ in how they control heat output, which affects comfort and energy use.

• Single-stage furnaces have one setting: on at full capacity. They are efficient but offer less temperature precision.
• Two-stage furnaces have two levels: a lower setting for mild weather and a high setting for cold days. This provides more consistent temperatures and quieter operation.
• Modulating furnaces are the most advanced. They adjust their heat output in tiny increments, running almost continuously at a low level to maintain a perfect temperature. They offer the highest efficiency and most even comfort.

How does a heat pump compare to a high-efficiency furnace?

Both are excellent options that work differently. A high-efficiency furnace burns fuel to create powerful heat, making it reliable in extreme cold. A heat pump moves heat from the outside air indoors, making it very energy-efficient in moderate temperatures. In summer, it reverses to provide cooling.

In Metro Atlanta, many homeowners choose a dual-fuel system, which combines a heat pump and a high-efficiency furnace. The heat pump handles heating and cooling in milder weather, and the furnace takes over when temperatures drop. This provides year-round comfort and efficiency. For a deeper dive, check out Comparing the most efficient heating systems for a house.

What are the key considerations for a high-efficiency furnace installation?

A successful high efficiency furnace installation depends on several critical factors that a professional technician will manage.

• Proper Sizing: An accurate heat load calculation is essential to avoid an oversized or undersized unit, which wastes energy and reduces comfort.
• Ductwork Condition: Your existing ducts must be able to handle the airflow of a new furnace. A professional inspection checks for leaks and proper sizing.
• Venting Requirements: High-efficiency furnaces require specific PVC piping for intake and exhaust, which must be routed and sealed correctly according to code.
• Condensate Drainage: The water produced during operation needs a dedicated, properly installed drain line to prevent damage.
• Thermostat Compatibility: A modern thermostat is required to communicate with the advanced features of a two-stage or modulating furnace.
• Installer Expertise: Most importantly, the complexity of these systems demands a NATE-certified technician who understands how all the components of your home's heating system work together. Improper installation can reduce efficiency by up to 30% and cause safety issues.

Conclusion: Upgrade Your Comfort and Efficiency

A high efficiency furnace installation is a smart investment in your home's comfort and value. These systems deliver significant long-term energy savings, superior comfort with even temperatures, and quieter operation, all while reducing your carbon footprint. With available tax credits and rebates, the decision is even more compelling.

However, the most advanced furnace will underperform if not installed correctly. The quality of the installation is critical. From the initial heat load calculation to the final commissioning checks, every step requires professional expertise to ensure your system achieves its rated efficiency.

At Staton Heating & Air Inc., we've provided that expertise to Cumming, GA, and Metro Atlanta since 1972. Our NATE-certified technicians are committed to quality and customer satisfaction, which is why we were named 2024's Best HVAC Company in Cumming. We treat your home with the care it deserves.

Don't endure another winter with an inefficient heating system. If you're ready for modern comfort and efficiency, we're here to help.

Contact us today to discuss your furnace replacement and installation needs. Let's create a warmer, more efficient home for your family.
