What Actually Happens Inside the Compressor When You Turn an Air Conditioner on Its Side

Why Transporting an AC Unit Flat Raises Immediate Concerns

Have you ever wondered exactly what actually happens inside the compressor when you turn an air conditioner on its side before loading it into the back of your vehicle? Many homeowners assume that because a cooling unit is a sealed, metal box, it can be transported in whatever position fits best in the trunk. Whether you are bringing home a brand-new system from the hardware store or relocating an existing unit to a different room, laying the equipment flat introduces a hidden and highly destructive danger. The immediate concern is not the refrigerant gas escaping, but rather the specialized lubricating oil housed deep inside the machinery.

When you power on a unit too quickly after it has been tilted, you risk catastrophic mechanical failure. This strict rule applies to almost every cooling system on the market, particularly the standard hermetic compressors in window, portable, and split-system ACs. Before you plug anything into the wall, it is critical to understand the internal physics at play. Whether you are dealing with a small standalone unit or planning a major upgrade to your home's air conditioning systems, knowing how to handle the equipment properly can save you from a costly, day-one replacement.

The Anatomy of a Compressor Sump and Lubrication System

To grasp why tilting a unit is so dangerous, you first need to understand the internal anatomy of the cooling system. At the core of standard hermetic compressors in window, portable, and split-system ACs is a heavy, sealed steel canister. This canister houses both the electric motor and the mechanical pump that drives the entire cooling cycle. At the very bottom of this casing sits the compressor sump.

The Role of the Sump and Oil

The compressor sump is essentially a built-in reservoir designed to hold a very specific volume of specialized lubricating oil, such as polyolester (POE) or mineral oil. This lubricant is thick, highly refined, and absolutely vital to the survival of the machine. Its primary function is to coat the high-speed internal moving parts, significantly reducing metal-on-metal friction and absorbing the intense heat generated during operation. Without this constant bath of oil, the internal components would overheat, warp, and grind to a halt almost immediately.

The Balance of Gas and Liquid

A healthy cooling system relies on a strict physical separation between the refrigerant and the lubricant. The compressor is engineered with one highly specific purpose: to squeeze and pump refrigerant gas. The lubricating oil, on the other hand, remains a heavy liquid. Under normal, upright conditions, gravity acts as the invisible safety mechanism holding this delicate balance together. Gravity ensures that the dense liquid oil stays safely pooled in the bottom sump, while the lighter refrigerant vapor is drawn into the upper compression chamber. As long as the unit remains vertical, the system operates in perfect harmony.

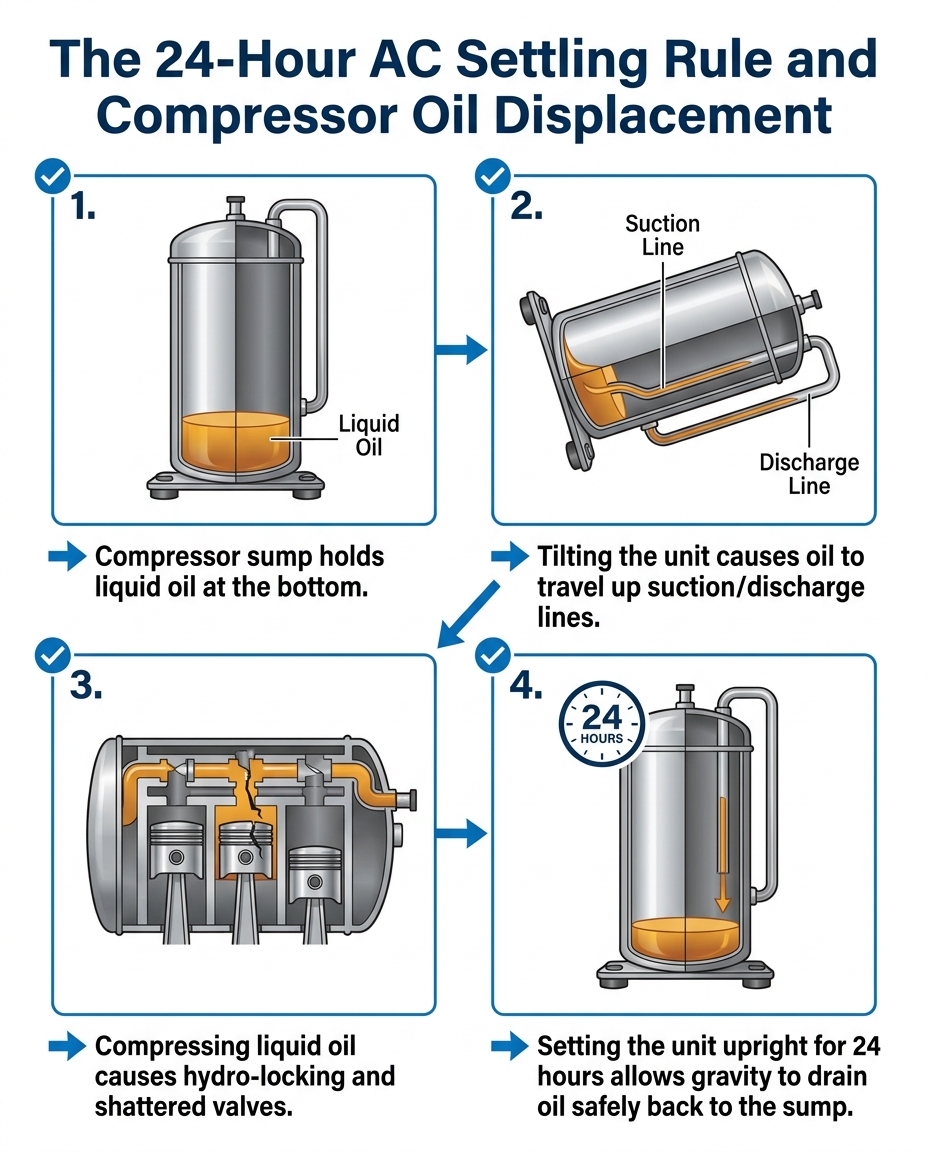

What Happens to the Oil When an Air Conditioner is Laid on Its Side?

The moment you tilt a cooling unit beyond a 45-degree angle, you disrupt the fundamental forces keeping the machine safe. Gravity no longer holds the oil in the bottom reservoir, and a chain reaction of internal displacement begins.

1. Gravity's hold is broken: As the unit tips flat, the pool of thick POE or mineral oil spills out of the compressor sump, much like water pouring out of a tipped glass.

2. Oil enters the refrigerant lines: Because the system is a closed loop, the displaced oil has nowhere to go but up into the suction or discharge lines. It begins slowly creeping through the copper tubing, traveling further into the system the longer the unit remains flat.

3. Improper mixing occurs: The heavy liquid oil begins to pool in the evaporator coils and upper lines—areas strictly designed to handle only lightweight refrigerant vapor. The two substances mix in a way the manufacturer never intended.

4. The upper chamber saturates: If the unit is left on its side for hours during transport, the compression chamber itself can become flooded with liquid oil. Standard hermetic compressors in window, portable, and split-system ACs are simply not built to clear this thick liquid out of the upper valves once it settles there.

The critical takeaway: The longer the unit spends on its side, the further the oil travels away from the sump, and the longer it will take to eventually drain back down.

The Physics of Hydro-Locking: Why Liquids Destroy Compressors

To understand why turning a displaced unit on is a fatal error, we have to look at the basic physics of matter. In the world of thermodynamics and mechanics, gases and liquids behave very differently under pressure.

The Compressibility Gap

Refrigerant gas has plenty of empty space between its molecules. When the compressor's internal piston or scroll pushes against the gas, those molecules simply squeeze closer together, increasing the pressure and temperature of the refrigerant so it can release heat outside. Liquids, however, are fundamentally incompressible. The molecules in the lubricating oil are already packed tightly together. You cannot squeeze a liquid into a smaller space.

The Hydro-Locking Phenomenon

If you power the unit on while liquid oil is trapped in the upper compression chamber, the motor will forcefully attempt to squeeze that liquid just as it would a gas. Because the liquid cannot compress, it pushes back against the internal mechanics with immense, unyielding hydraulic force. This event is known as "hydro-locking."

The immediate result: The immense pressure finds the weakest point in the system. Within a fraction of a second, the internal steel valves shatter, the connecting rods bend, and the compressor mechanism destroys itself from the inside out. This is one of the most severe air conditioning problems a homeowner can face, as the damage is irreversible and requires a complete replacement of the unit or the compressor itself. Standard hermetic compressors in window, portable, and split-system ACs rarely survive a hydro-locking event.

Oil Starvation vs. Hydro-Locking: Two Paths to Mechanical Failure

Turning a sideways unit on too soon usually results in one of two catastrophic scenarios: hydro-locking or oil starvation. Both paths lead to the same destination—a completely ruined system on day one.

One customer reached out during the summer when their upstairs AC unit stopped cooling, and a newly replaced unit subsequently failed shortly after installation. It took multiple visits to properly diagnose the root cause and replace the faulty equipment before all problems were fully resolved. This real-world scenario highlights just how complex and unforgiving catastrophic system failures can be when internal components are compromised. Whether a unit is mishandled during transport or improperly started, the resulting damage is rarely a quick fix.

• Hydro-Locking — The Mechanism: Liquid oil floods the upper compression chamber. The motor attempts to compress the incompressible liquid. — The Immediate Result: Internal valves shatter instantly under hydraulic pressure. The compressor is destroyed within seconds.

• Oil Starvation — The Mechanism: Oil remains trapped high in the refrigerant lines, leaving the bottom compressor sump completely dry upon startup. — The Immediate Result: Severe metal-on-metal friction occurs. The internal parts overheat, score, and eventually seize up completely.

In both cases, standard hermetic compressors in window, portable, and split-system ACs are left permanently damaged. There is no simple reset button or minor repair for a shattered valve or a seized motor; the entire unit must be replaced.

The 24-Hour Rule: How Long Does an AC Need to Sit Upright?

If you have already transported a unit on its side, the most critical decision point you face is determining exactly how long to wait before plugging it in. Bypassing this waiting period is a guaranteed way to ruin your investment.

The Industry Standard Waiting Period

The definitive industry standard is to let the unit sit entirely upright for at least 24 hours before powering it on. This extended waiting period gives gravity the time it needs to slowly pull the thick, viscous oil out of the narrow copper refrigerant lines and drain it safely back down into the compressor sump. Because the oil is thick, it moves sluggishly, especially if the unit is sitting in a cooler environment.

The Alternative Rule of Thumb

If you know exactly how long the unit was tilted, a secondary rule of thumb is to let it sit upright for an amount of time equal to how long it was on its side. For example, if it rode in the back of your SUV for four hours, it must sit upright for a minimum of four hours. However, during the July peak summer cooling season, when the demand on the equipment will be intense right from the first startup, the full 24-hour rule is the only truly safe approach. Patience is the only reliable way to prevent immediate mechanical failure.

Why Professional Handling Prevents Day-One Breakdowns

When the heat is bearing down, waiting a full day to turn on a new cooling system is rarely an option. In places like Cumming, GA, a mid-July compressor failure leaves a home dangerously hot while waiting for replacement parts, making day-one reliability absolutely essential. Homeowners simply cannot afford to let a newly delivered unit settle for 24 hours before getting relief from the heat.

This is exactly why professional handling and installation are so critical. Professional HVAC contractors bypass the oil displacement issue entirely by transporting heavy equipment upright and fully secured in specialized fleet vehicles. Because the units are never laid flat, the oil never leaves the compressor sump.

Working with Staton Heating & Air Inc means you benefit from professional, by-the-book handling and installation protocols. Our technicians ensure that the compressor oil remains properly settled throughout the entire delivery process, meaning your new system is completely safe to power on and test the very moment installation is complete. Avoiding improper transport protects the long-term lifespan of the equipment and ensures you do not need to call for an emergency air conditioning repair service on the very first day.

Frequently Asked Questions About AC Transport and Compressor Oil

What happens if you turn an air conditioner on its side?

When you turn a unit on its side, the lubricating oil escapes the compressor sump and travels into the refrigerant lines. Because the system relies on gravity to keep the oil at the bottom, tilting it disrupts this balance. If you turn the unit on while it is in this state, it causes hydro-locking or oil starvation, which will destroy the internal mechanics. Standard hermetic compressors in window, portable, and split-system ACs are all vulnerable to this damage.

Why does an air conditioner need to sit for 24 hours after you install or move it?

It takes time for gravity to pull the thick compressor oil out of the upper lines and back into the bottom reservoir. Waiting a full 24 hours ensures that the compressor will only attempt to compress refrigerant gas, not liquid oil. If you skip this waiting period, the liquid oil can shatter the internal valves upon startup.

Can you lay a window AC unit flat in a car?

It is highly discouraged to lay any cooling unit flat, but if it is absolutely unavoidable, it must sit upright for 24 hours before use. Laying a window unit flat risks the exact same oil displacement issues as larger central systems. The internal compressor mechanics function identically, meaning the risk of hydro-locking remains very high.

How do you fix an air conditioner that was laid on its side?

If the unit has not been turned on yet, simply leave it upright for 24 hours to "fix" the displaced oil by letting gravity do the work. However, if the unit was turned on and the compressor shattered, there is no simple fix. The entire unit, or the internal compressor itself, must be fully replaced by a licensed professional.

Will turning on a sideways AC immediately ruin it every time?

While it is not guaranteed to fail in the very first second, the risk of catastrophic valve damage is extremely high. Some units might run briefly before seizing, while others will shatter a valve the moment the motor engages. It is never worth the financial risk to bypass the waiting period and test your luck.

Ensure Safe and Reliable Cooling with Expert HVAC Guidance

The science is clear: patience and the 24-hour rule are completely non-negotiable if a cooling unit was transported flat. Understanding what actually happens inside the compressor when you turn an air conditioner on its side helps you avoid a devastating mechanical failure before you even get to enjoy the cold air. The July peak summer cooling season demands equipment that is handled correctly from the start, as any internal damage will severely compromise your home's comfort. To ensure your home stays perfectly cooled without the risk of day-one breakdowns, reach out to local experts for reliable air conditioning installation and by-the-book handling.
