How We Diagnose a Frozen Evaporator Coil on a 95-Degree Day

When Summer Heat Meets a Block of Ice: The 95-Degree Day Dilemma

Before the absolute peak of August late-summer 95-degree heat settles over our neighborhoods, understanding exactly how we diagnose a frozen evaporator coil on a 95-degree day can save you from a major cooling disaster. It is late afternoon, the sun is beating down on your roof, and your thermostat reads a sweltering 82 degrees despite running continuously. You walk out to your outdoor unit or check your indoor air handler, only to discover thick, white ice encasing the copper lines. Discovering a frozen unit during the hottest stretch of the year is a homeowner's worst nightmare, but it is a scenario our technicians see constantly as end-of-season wear and tear pushes equipment to its absolute limit.

When an HVAC unit runs non-stop to combat severe heat, any minor inefficiency is magnified. A small airflow restriction that went unnoticed in May suddenly becomes a critical failure in August. This brings us to a major decision point for any technician arriving at your home. We call it the diagnostic fork in the road. Instead of guessing or immediately assuming the worst, a professional must systematically rule out basic airflow restrictions before hunting for complex refrigerant leaks. By following a strict, step-by-step process, we ensure that your air conditioning systems receive the exact repair they actually need.

The Science of the Freeze: Why High Humidity Accelerates the Problem

To understand why your system turns into a block of ice, you have to understand the basic physics of air conditioning. Your AC does not actually create cold air; it removes heat from the air inside your home. It does this by passing warm indoor air over a freezing cold evaporator coil. Under normal conditions, the refrigerant inside that coil stays around 40 degrees Fahrenheit. However, if something disrupts the process, the temperature of the coil can plummet below 32 degrees Fahrenheit. Once it hits the freezing point, trouble begins.

The Role of Local Climate

Living in Cumming GA means dealing with a humid subtropical climate. Our air is incredibly heavy with moisture during the summer months. When your system is operating normally, this ambient moisture condenses on the cold coil and safely drips down into a drain pan. But when the coil drops below freezing, that heavy Cumming GA humidity rapidly condenses and freezes solid on the metal fins.

Because the air is so wet, ice forms much faster and thicker here than it would in a dry, arid climate. Furthermore, because the intense heat forces the system into continuous run-cycles, the unit never gets a chance to rest and naturally thaw. A thin layer of frost quickly snowballs into a solid glacier, suffocating the system completely.

• High Ambient Humidity — Impact on Your AC Coil: Provides excess moisture that turns into rapid, heavy ice accumulation.

• Extreme 95-Degree Heat — Impact on Your AC Coil: Forces continuous run cycles, preventing the system from naturally defrosting.

• Extended Summer Wear — Impact on Your AC Coil: Weakens aging components, making them more likely to fail under stress.

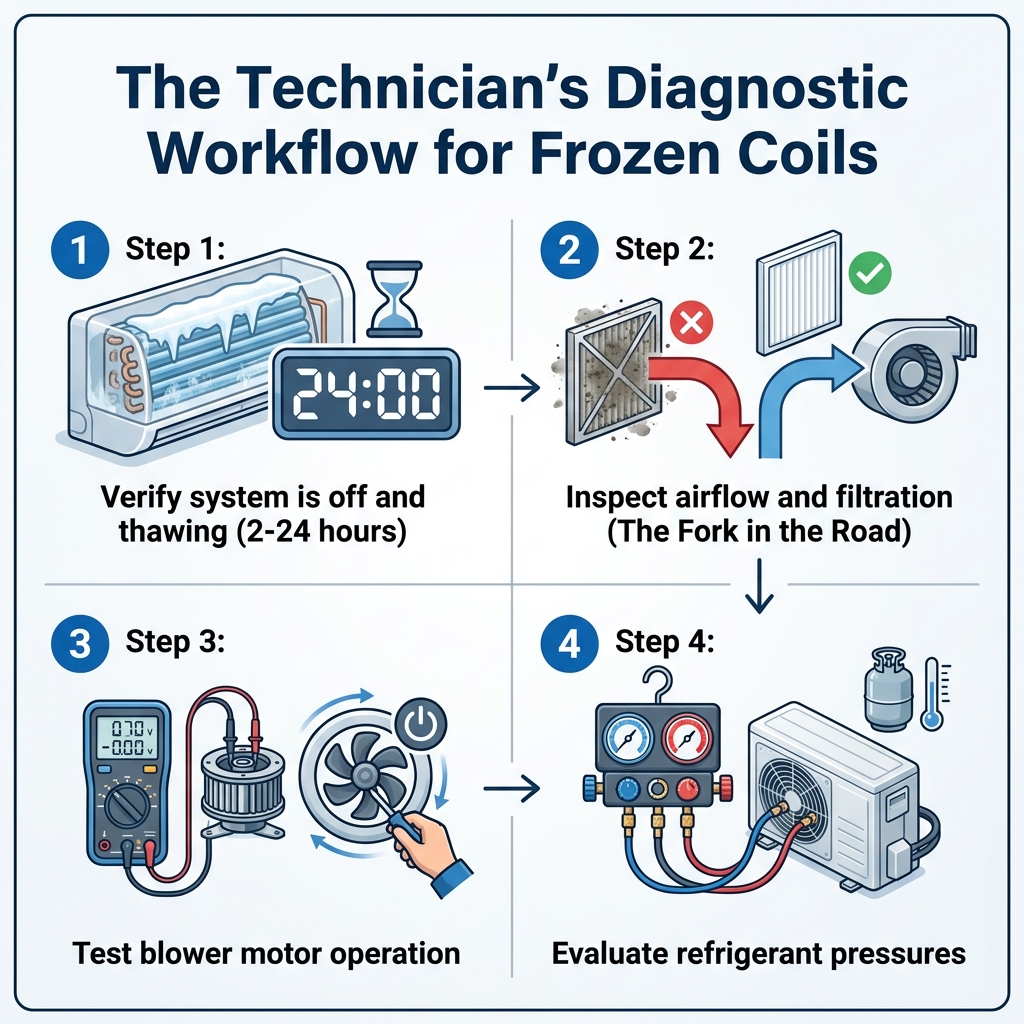

Phase 1: The Mandatory System Thaw and Safety Protocol

When a technician arrives at your home and finds a frozen system, the very first step is always the same: shutting the equipment down. You cannot properly test, measure, or repair a block of ice. Patience is required, and safety protocols must be followed strictly.

1. Shutting down the compressor: The system must be turned off immediately at the thermostat. Running a frozen AC can cause liquid refrigerant to flow backward into the compressor (a condition known as liquid slugging), which can destroy the most expensive part of your system.

2. The waiting game: Depending on the severity of the ice buildup, a fully frozen unit can take anywhere from 2 to 24 hours to completely thaw. Turning the thermostat fan to the "ON" position can help circulate warm air over the coil to speed this up.

3. Protecting the surrounding area: As pounds of ice melt, the drain pan can easily overflow. Technicians monitor the thaw to ensure water does not damage your ceilings, floors, or furnace electronics.

4. Avoiding DIY destruction: We strongly advise against any DIY thawing methods. Never use hair dryers, heat guns, or pour hot water over the coils. Never try to chip the ice away with a tool. The aluminum fins and copper tubes are incredibly fragile, and a single puncture will turn a simple thaw into a catastrophic failure requiring full air conditioning repair service.

Only after the ice has completely melted away, leaving the coils bare and dry, can the true diagnostic work begin. The August late-summer 95-degree heat makes waiting uncomfortable, but this phase is non-negotiable for an accurate repair.

Phase 2: The Airflow Investigation (The Diagnostic Fork in the Road)

Once the system is thawed, we reach the diagnostic fork in the road. The most common cause of a frozen coil is a lack of warm air moving across it. Therefore, before we ever hook up complicated refrigerant gauges, we perform a systematic airflow investigation.

The Problem: The evaporator coil temperature drops below freezing because it is not absorbing enough heat from the house. The Cause: Something is physically blocking the warm return air from reaching the coil. The Solution: A methodical check of the home's breathing system to remove the restriction.

Our technicians start with the simplest explanations. We check the air filter first. A filter completely caked in dust and pet hair acts like a brick wall, suffocating the blower. Next, we inspect the return vents inside the home to ensure furniture or rugs aren't blocking them. We then evaluate the ductwork itself for collapsed sections or heavy debris. If we skip these basic checks, we risk misdiagnosing the entire system.

One Cumming homeowner, a loyal customer with a 12-year history with our team, reached out during a recent summer scorcher when their unit started icing up. Because our technician recognized the specific brand's airflow quirks and knew the home's layout, they quickly traced the issue to a subtle airflow restriction rather than a catastrophic leak. The technician fixed the unit by addressing the airflow, saving the customer from invasive and unnecessary refrigerant testing. Understanding what causes your air conditioner to freeze up starts with these foundational checks.

Phase 3: Evaluating the Blower Motor and Electrical Components

If the air filter is clean and the ductwork is clear, the airflow restriction might be mechanical. The system needs a strong, functioning blower motor to physically push air across the evaporator coil. This phase requires specialized tools and strict safety protocols.

Testing the Mechanical Heart of the System

Our technicians use professional multimeters to test the blower motor's amp draw. If the motor is drawing too many amps, it is working too hard and may be failing. We also test the run capacitor, which acts as a battery that gives the motor the jolt of energy it needs to spin. A weak capacitor will cause the motor to run sluggishly or not at all, immediately leading to a frozen coil.

• Blower wheel inspection: We check the cylindrical blower wheel for dirt buildup. Even a tiny 1/8th-inch layer of dust on the curved blades can reduce the fan's air-moving capacity by up to 30%.

• Coil surface evaluation: We inspect the actual surface of the evaporator coil. If the coil itself is packed with dirt, air cannot pass through the microscopic gaps between the metal fins.

• Control board diagnostics: We verify that the thermostat is sending the correct voltage signals to the air handler's control board to engage the fan.

A strict warning regarding electrical diagnostics: Testing capacitors and blower motors involves handling high-voltage components that carry enough stored energy to cause serious injury or death. This is exactly why these steps must be performed by a licensed professional. DIY electrical troubleshooting is incredibly dangerous and can easily fry your system's main control board.

Phase 4: Hunting for Refrigerant Leaks and Pressure Drops

If the airflow is perfect, the filters are clean, and the blower motor is pushing strong air, we move to the complex side of the diagnostic fork: evaluating the refrigerant charge. An air conditioner is a closed-loop system. Refrigerant does not evaporate over time, nor does it get "used up" like gas in a car. If the system is low on refrigerant, there is a leak.

When refrigerant levels drop, the pressure inside the evaporator coil drops with it. According to the laws of thermodynamics, a drop in pressure causes a drop in temperature. This is how a low charge causes the coil to freeze solid.

1. Attaching the gauges: Once the system is fully thawed and dry, technicians connect professional manifold gauges to the service valves outside to measure the precise pressures and temperatures of the refrigerant.

2. Analyzing the data: We calculate the superheat and subcooling measurements. These numbers tell us exactly how much liquid versus vapor is moving through the system, confirming if the charge is genuinely low.

3. Pinpointing the leak: If the charge is low, we must find the hole. Technicians use highly sensitive electronic leak detectors (sniffers) that beep when they detect refrigerant gas. We may also inject a specialized UV dye into the system, which glows brightly under a blacklight at the exact site of the leak.

4. Formulating a repair plan: Depending on the location and size of the leak, the repair might involve brazing a copper joint, replacing a rusted indoor coil, or tightening a valve core.

Sometimes the root cause fights back and requires deep persistence. One local customer called during a summer heatwave when their upstairs unit stopped cooling entirely. The initial assessment revealed a bad coil that required a full unit replacement. However, even after the new installation, the system struggled. It took multiple dedicated follow-up visits to track down a secondary, hidden leak in the original line set. By sticking with the systematic process, all problems were eventually resolved. What initially seems like a simple AC failure can sometimes reveal complex underlying problems requiring multiple diagnostic steps.

Transparency in Troubleshooting: Finding the True Root Cause

The difference between a frustrating summer and a comfortable home comes down to finding the true root cause. At Staton Heating & Air, we believe in extreme professional transparency. We do not just tell you the system is broken; we show you the data, walk you through the diagnostic fork in the road, and explain exactly why a specific repair is needed.

It is easy for a less scrupulous technician to apply a "band-aid" fix. If a system is freezing due to a leak, simply adding more refrigerant will temporarily stop the freezing. But that refrigerant will leak out again, leaving you right back where you started during the next heatwave. Our systematic approach ensures we find the actual leak or the specific airflow restriction, rather than just treating the symptom.

End-of-summer wear and tear makes this thorough diagnostic approach critical for preventing repeat breakdowns. When your system has been battling August late-summer 95-degree heat for weeks, parts are stressed. Catching a failing blower motor or a small refrigerant leak early prevents catastrophic compressor failure later. This is also why routine AC maintenance is so vital. A proper tune-up catches dirty coils, weak capacitors, and clogged filters long before they result in a 95-degree day freeze-up.

Restoring Your Home's Comfort with Confidence

Dealing with a frozen air conditioner is stressful, but understanding the professional diagnostic process gives you confidence in the assessment. You now know that a frozen coil is not a mystery—it is a specific mechanical or chemical failure that can be systematically tracked down and solved.

Whether the issue traces back to a severely dirty air filter, a failing blower motor, or a complex refrigerant leak hidden deep in the copper lines, a methodical approach ensures the right fix the first time. If you are staring at a block of ice on your AC unit today, turn the system off, switch the fan to "ON," and reach out to our team. We will walk through this exact diagnostic workflow to restore your home's comfort safely, efficiently, and transparently.

Frequently Asked Questions

Why does my AC freeze up when it's hot outside?
Your AC freezes when the evaporator coil temperature drops below 32 degrees Fahrenheit, usually due to restricted airflow or low refrigerant. In extreme heat, the system runs continuously, which prevents the coil from naturally thawing during off-cycles. The heavy ambient moisture in the air then rapidly condenses and freezes into a solid block of ice.

How long does it take an evaporator coil to unfreeze?
A severely frozen evaporator coil typically takes anywhere from 2 to 24 hours to thaw completely. The exact time depends on the thickness of the ice, the temperature inside your home, and whether you leave the blower fan running. A technician cannot perform accurate diagnostic tests until every trace of ice has melted.

Can you pour hot water on a frozen AC coil?
No, you should never pour hot water over a frozen air conditioning coil. The sudden, extreme temperature change can cause the delicate copper tubing and aluminum fins to warp or crack, turning a simple thaw into a catastrophic refrigerant leak. Always let the system melt naturally or use the thermostat's fan setting to circulate room-temperature air.

How do professionals diagnose a frozen AC coil?
Professionals use a systematic approach, starting with a thorough airflow investigation to check filters, vents, and ductwork. Once basic airflow is confirmed, technicians test the electrical components like the blower motor and capacitor. Finally, if airflow is perfect, they attach professional gauges to measure refrigerant pressures and hunt for potential leaks.

What should I do while waiting for AC repair?
The most important thing you can do is turn the cooling function off at your thermostat immediately to protect the compressor from damage. You can switch the thermostat fan setting from "AUTO" to "ON" to help blow warm indoor air over the coil and speed up the melting process. Place towels around the indoor unit to catch any overflowing water from the drain pan.

Is it safe to run my AC on fan-only mode while it thaws?
Yes, running the system in fan-only mode is completely safe and highly recommended during the thawing process. This setting keeps the outdoor compressor turned off while forcing the indoor blower motor to circulate warm house air over the frozen coil. This is the fastest and safest way to melt the ice before a technician arrives.
