Fix Your Furnace: Control Board Repair Made Easy

The Brain of Your Furnace

Furnace control board repair is often the solution when your heating system won't start, runs erratically, or fails to maintain temperature. The control board acts as the brain of your furnace, managing everything from ignition timing to blower operation.

Quick Answer for Furnace Control Board Repair:

1. Diagnose the problem - Look for flashing LED lights, burning smells, or no power to the board
2. Test with a multimeter - Check for 120V AC power at the common wire from transformer
3. Safety first - Turn off power at breaker and gas valve before starting work
4. Document everything - Take photos of all wire connections before removal
5. Replace the board - Transfer wires one by one to the new control board
6. Test the system - Restore power and run a complete heating cycle

Your furnace control board tells your system when to turn on the gas, when the fan can shut off, and manages the entire heating sequence. When it fails, you might notice warning lights flashing, your furnace stuttering, or a complete system shutdown.

The good news? Many control board issues can be fixed with basic tools and careful attention to safety. However, working with gas appliances and electrical components requires respect for the risks involved.

At Staton Heating & Air Inc., we understand the frustration of a malfunctioning furnace. Serving Metro Atlanta, Cumming, and North Georgia since 1972, we've seen countless control board issues. While our NATE-certified technicians are always ready to help, we also believe in empowering homeowners. This guide will walk you through diagnosing and replacing your furnace's control board.

Is Your Furnace Control Board Failing? Diagnosis and Testing

When your morning routine is interrupted by a cold house, the furnace control board is often the prime suspect. This component is the conductor of your heating system's orchestra, telling every part when to play and for how long. A failing board creates a symphony of frustration, leaving you reaching for an emergency blanket.

Common Signs of a Bad Control Board

Your furnace signals problems if you know how to listen. Flashing LED lights on the control board are a key indicator. These lights blink in patterns corresponding to error codes in your owner's manual, making diagnosis much easier.

When the diagnostic light is completely dark, it's a clue that power isn't reaching the board at all. That silence speaks volumes.

Stuttering furnace sequences are another telltale sign. Your furnace might start its startup process—inducer motor on, igniter glow—but then stop mid-performance. This suggests the control board is having trouble sending consistent signals.

An inability to maintain temperature often points to a control board that's struggling to regulate heating cycles. On the flip side, you might find your blower running constantly, even when there's no call for heat. This usually means a relay on the control board is stuck in the "on" position.

Burning smells should never be ignored. If you smell something electrical burning, turn off your system immediately. Sometimes you'll find visible damage on the board itself—burn marks or discolored areas.

We've also seen boards with condensation damage, especially in humid climates or when drainage issues allow moisture to drip onto sensitive electronics. Before diving into furnace control board repair, check our guide on Common Furnace Repair Issues to rule out simpler problems.

How to Test the Control Board with a Multimeter

Once you suspect the control board, it's time to play detective with a multimeter. This tool helps confirm whether your board is receiving power and sending signals to other components.

Safety comes first. Turn off power to your furnace at the circuit breaker before you start. Working with electricity requires respect.

Testing for power starts with locating the transformer common wire. This wire typically carries 120VAC. With the power off, remove your furnace access panels and locate the door switch; you'll need to tape this down to allow power to flow during testing.

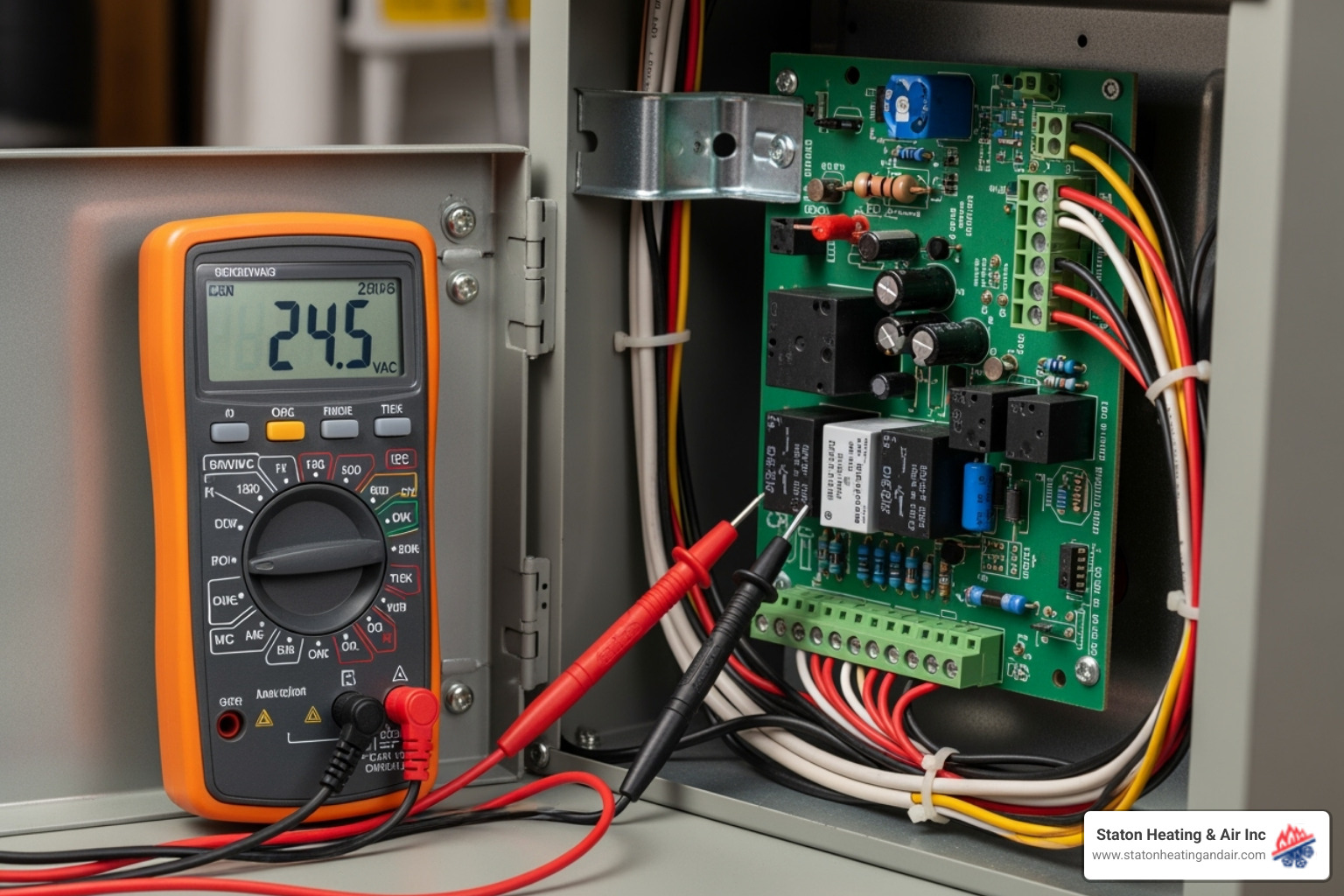

Carefully restore power at the breaker and set your multimeter to measure AC voltage. Place one probe on the common wire connection at the board and the other on a grounded metal part of the furnace chassis. You should see approximately 120 volts. No reading might mean a faulty transformer, not the board.

Testing terminals determines if your board is sending signals. Look for the low-voltage terminals, typically labeled R, G, W, Y, and C. The R terminal provides 24-volt power, G controls your blower motor, and W handles heating functions.

To test the blower motor, use a short insulated wire to briefly jump the R and G terminals. If the board is working, the blower should start. For testing heating functions, jump the R and W terminals to trigger the complete ignition sequence.

If your board receives power but fails these tests, it needs replacement. Sometimes the issue is the thermostat, so our guide on Furnace Thermostat Problems can help you rule that out.

Step-by-Step Guide to Furnace Control Board Repair and Replacement

Now that you've confirmed your control board needs replacing, it's time to get to work. While furnace control board repair might sound intimidating, many homeowners tackle this project successfully. By following each step carefully and prioritizing safety, you can save hundreds of dollars. The key is preparation and patience; this isn't a race.

Safety First: Preparing for Your Furnace Control Board Repair

Before opening the furnace panel, let's talk safety. Working with electrical and gas components demands respect. One mistake can lead to electrocution, fire, or gas leaks.

First, gather your tools. You'll need a screwdriver set, pliers, your multimeter, and your camera or phone for documentation. Don't forget labels or tape for marking wires, safety glasses, and protective gloves.

Now for the crucial safety steps. Go to your electrical panel and flip the furnace circuit breaker to "OFF." Next, find the gas shut-off valve on the line to your furnace and turn the handle perpendicular to the pipe. The gas must be off.

Even with the power off, use your multimeter to double-check that no electricity is flowing to the furnace. Test the main power connections to be certain. Ground yourself by touching a metal part of the furnace chassis before handling electronics.

Removing the Old Control Board

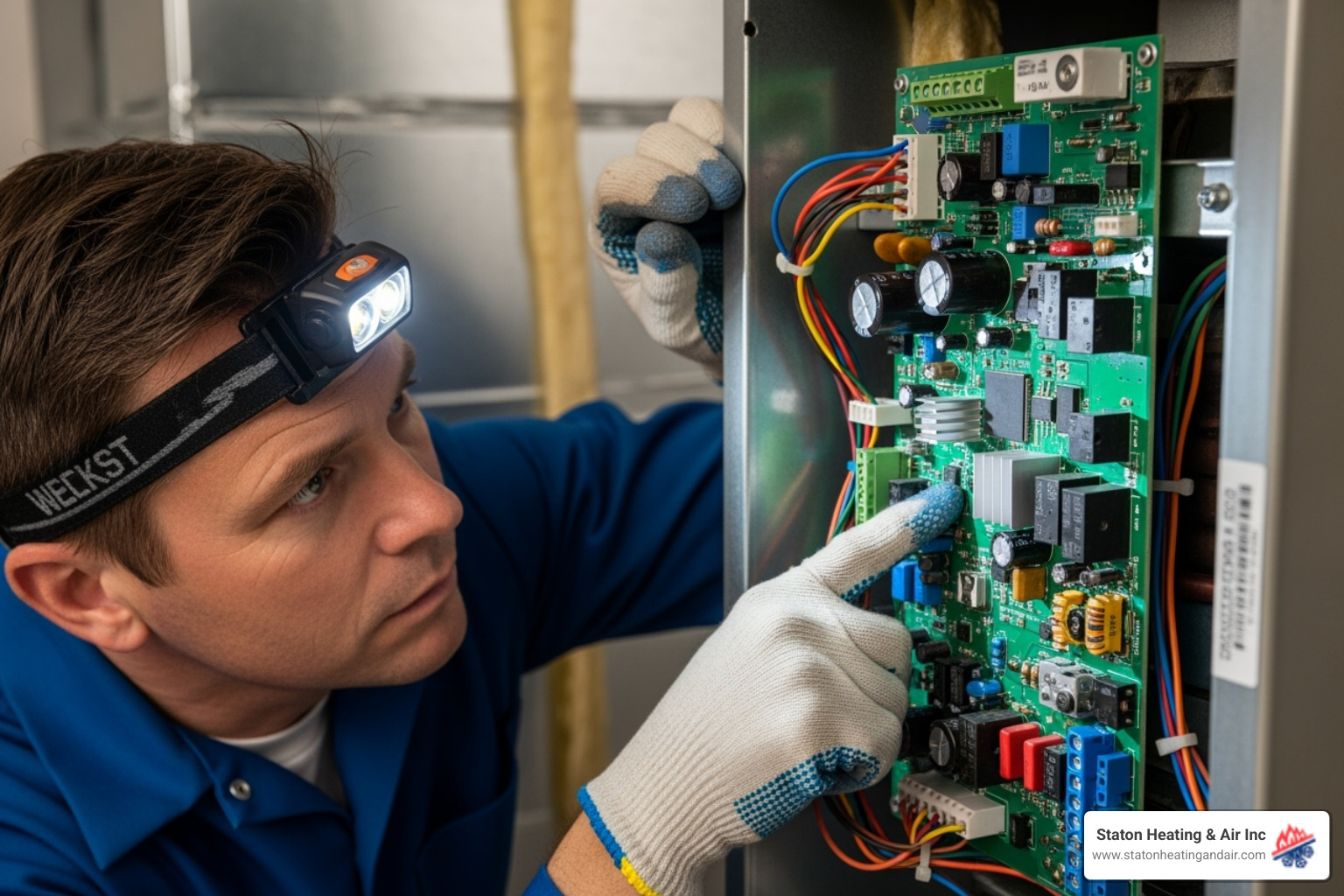

With safety measures in place, remove the access panels. The control board is typically in the blower chamber.

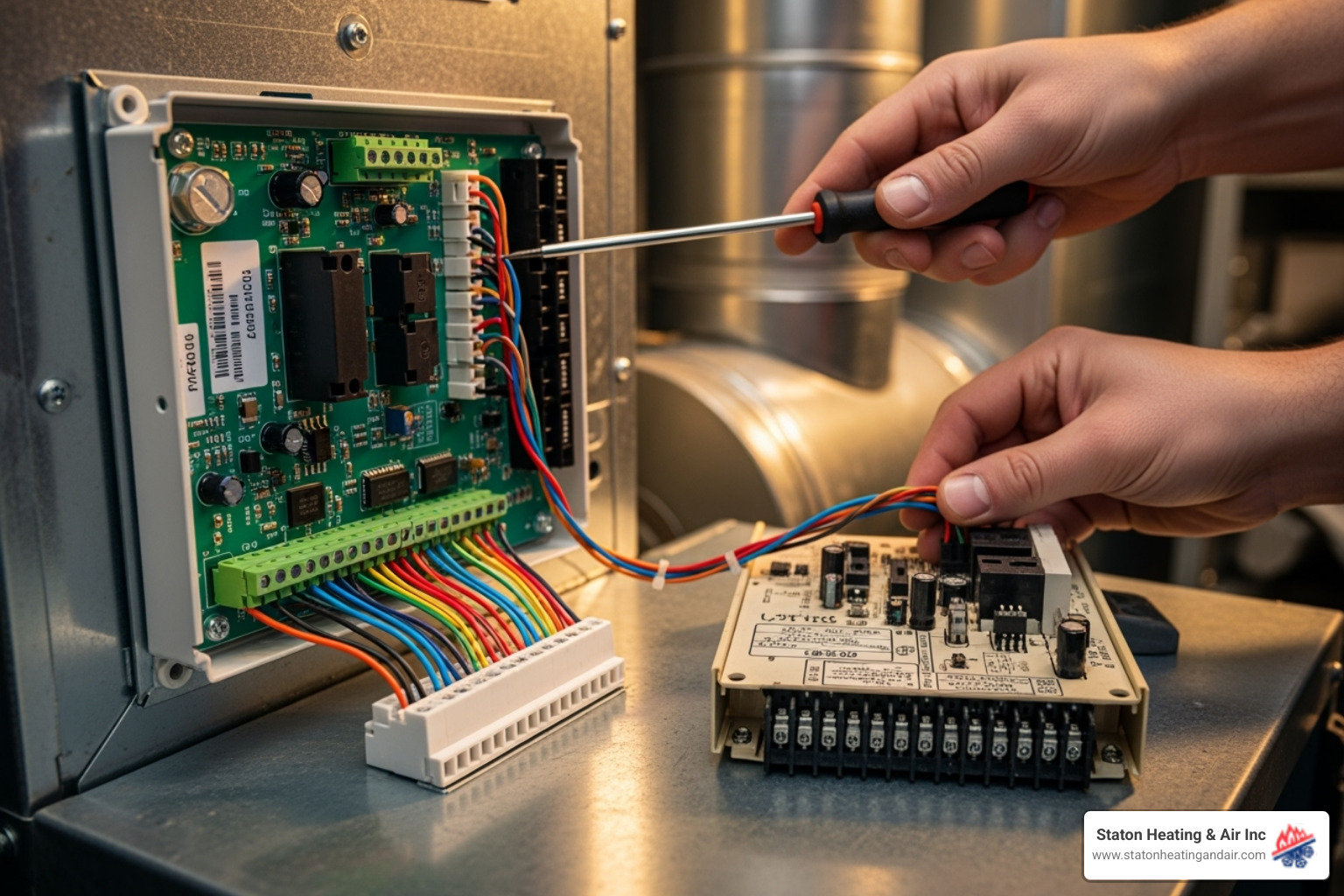

Here's where your camera is essential. Before touching a single wire, take multiple photos from different angles. Get close-up shots of every connection, wire color, and terminal label. These photos are your roadmap.

Now, methodically disconnect each wire. As you do, label it with tape, writing down the corresponding terminal like "R," "G," or "W." This provides extra insurance against mistakes. Work slowly, disconnecting one wire at a time.

Once all wires are free, remove the mounting screws or clips holding the board. The old control board should lift out easily. You might see obvious signs of failure like burn marks that confirm your diagnosis.

Installing the New Control Board

It's time to bring your furnace back to life with a new brain.

Before connecting anything, verify your new control board matches the old one or is a compatible universal replacement. Check your furnace's model and serial number against the board specifications.

Place the new board next to the old one to make wire transfer easier. Transfer wires one at a time, following your photos and labels. This methodical approach prevents confusion.

Pay special attention to the thermostat wires (R, G, W, Y, C). A mistake here means your furnace won't respond to temperature changes. Ensure every connection is secure.

Once all wires are connected, mount the new board. Double-check that it's secure and no wires are pinched. Replace the access panels, ensuring they're properly seated to avoid tripping safety switches.

The Final Test: Post-Furnace Control Board Repair Checks

This is the moment of truth. Turn the gas valve back on (handle parallel to the pipe) and restore power at the circuit breaker. Go to your thermostat and set it to call for heat.

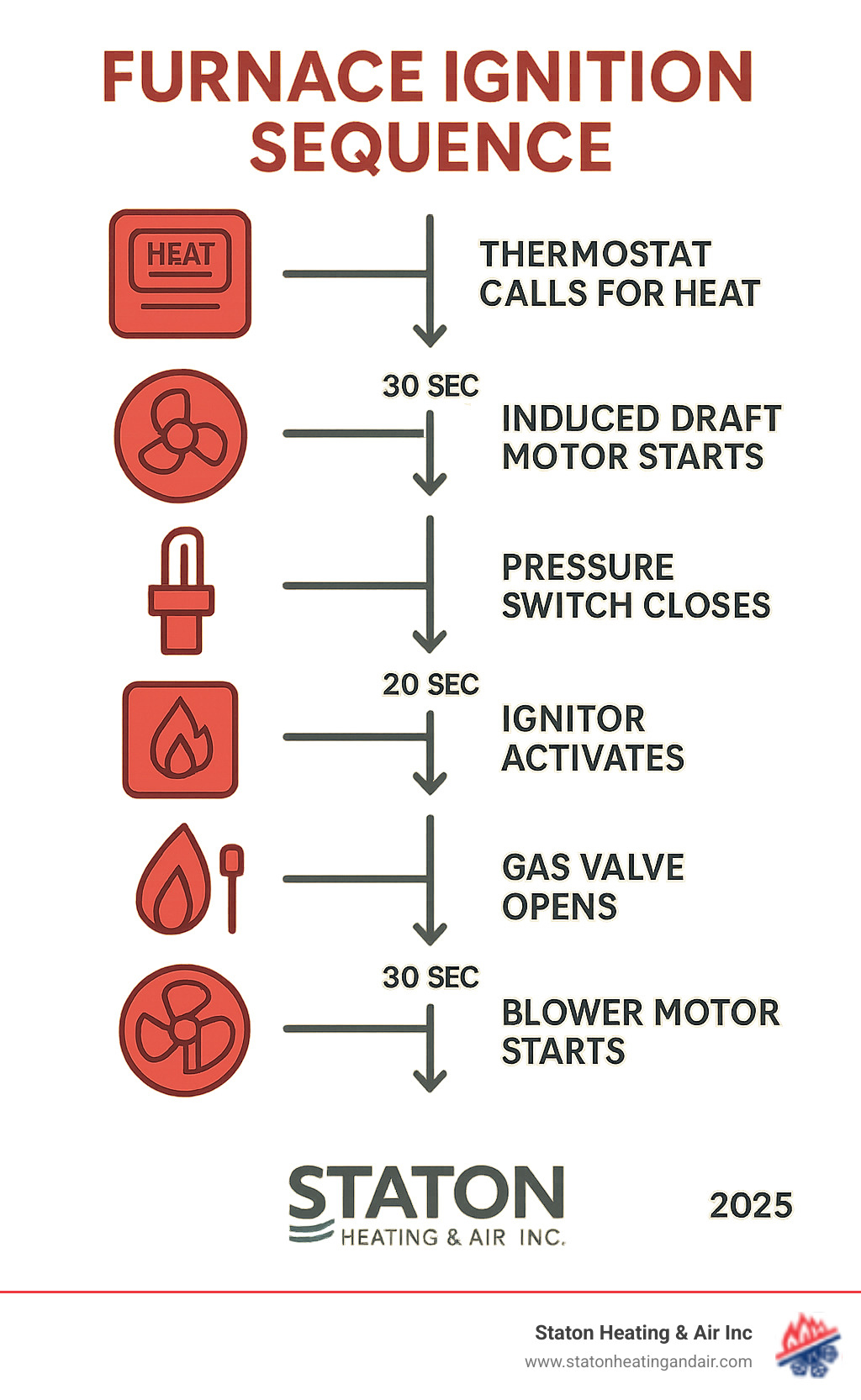

Listen as your furnace starts its sequence. You should hear the induced draft motor, the igniter, and then the whoosh of the burners lighting. After a short delay, the blower fan should start.

Let the system complete one full heating cycle to ensure it starts, heats, and shuts off correctly. If it works, congratulations! You've completed a furnace control board repair. To keep it running smoothly, check our Furnace Maintenance Tips.

If something seems wrong, turn everything off and double-check your connections against your photos. A loose or reversed wire is often the culprit.

DIY vs. Professional Help: Making the Right Call

Understanding the costs, risks, and when it's best to leave it to the experts.

Deciding whether to tackle furnace control board repair yourself or call in the pros isn't just about saving money—it's about safety. While we love empowering homeowners, we've also seen what can happen when a DIY project goes wrong.

Can a Furnace Control Board Be Repaired?

Not every faulty control board needs to be replaced. Component-level repair can sometimes breathe new life into an old board.

The most common culprit is cracked solder joints. These tiny fractures often happen from years of vibration. While they can sometimes be re-soldered, this requires steady hands and soldering skills. Control board failures are a commonplace issue in many modern appliances, not just furnaces.

Relay replacement is another possibility. These switches tell your blower when to run. Replacing a worn-out relay costs little for the part but requires precision soldering.

There are also mail-in repair services that specialize in fixing HVAC control boards. You ship them your board, they repair and test it, and send it back with a warranty.

However, component-level repair requires specialized knowledge and tools. If you're not comfortable with delicate electronics work, a full replacement or a professional call is a better option.

When to Call a Professional HVAC Technician

Some jobs are best left to the pros from the start.

Complex wiring should be your first red flag. If the wiring looks like mission control, step back. Our technicians approach complex wiring with respect and caution.

No power to the entire furnace often signals problems beyond the control board, like issues with the main electrical feed or transformer that require professional diagnostic equipment.

Here's a non-negotiable: if you smell gas, stop everything and call a professional immediately. Gas leaks are serious and require expert attention right away.

Unsure about your diagnosis? It's normal. What looks like a control board problem could be a failed flame sensor or a clogged pressure switch. Our technicians can pinpoint the real culprit quickly.

The risks of DIY furnace control board repair are real: electrocution, fire hazards from improper wiring, and further system damage. You might also void your furnace's manufacturer warranty.

While DIY can save money, there's value in professional peace of mind. If you're in Metro Atlanta, Cumming, Alpharetta, or Milton and feel uncertain, we're here to help. Check out our professional heating repair services for expert assistance.

Frequently Asked Questions about Furnace Control Board Repair

When a heating system fails, questions about furnace control board repair arise. After serving families throughout Metro Atlanta and Cumming for decades, we've heard them all. Here are the most common ones.

What is the average cost to replace a furnace control board?

The cost for furnace control board repair varies. A DIY repair means you only pay for the part, which can be a significant saving. Hiring a professional includes the cost of the part plus labor, which covers expert diagnosis, safe installation, and a warranty. Labor costs depend on your location, furnace model, and the board's accessibility.

How long does a furnace control board last?

Most furnace control boards last 10 to 15 years, similar to the furnace's lifespan. However, several factors can shorten this timeline.

• Age and continuous operation naturally wear down electronic components.
• Power surges from storms or grid issues can damage sensitive circuits. A whole-house surge protector can help.
• Moisture problems from condensation or leaks are detrimental to electronics.
• Constant vibration from the blower motor can loosen solder connections over time.
• Component failures elsewhere in the system can stress the control board, causing it to fail prematurely.

Can I use a universal control board for my furnace?

Yes, universal control boards are a practical solution when the original equipment manufacturer (OEM) part is expensive or unavailable. They are engineered to work with multiple furnace brands.

Compatibility checking is critical. You must match specifications like voltage requirements, heating stages, and other control functions. Your furnace model number, found inside the furnace cabinet, is essential for this.

OEM versus universal boards both have pros and cons. OEM parts guarantee perfect compatibility but often cost more. Universal boards are typically cheaper and more available but require careful matching.

When in doubt, professional advice can prevent costly mistakes. Our NATE-certified technicians have experience with both OEM and universal boards and can ensure your repair is done right.

Stay Warm and Safe with Expert Help

Completing a furnace control board repair yourself can be incredibly satisfying and save you money. It's rewarding to diagnose a problem, follow the steps, and hear your furnace start up again.

However, we've been in this business since 1972 and have seen DIY projects go wrong. Working with gas and electricity isn't like fixing a leaky faucet. A small mistake can lead to dangerous situations or a more expensive repair.

That's why our philosophy at Staton Heating & Air Inc. has always been "Where customers come first!" – and that includes being honest about when to DIY. If you've read this guide and feel confident, have the right tools, and are comfortable with electrical work, then go for it.

However, if anything feels uncertain – if the wiring looks too complex or you're not getting the right multimeter readings – there's no shame in calling for backup. Our NATE-certified technicians have seen every type of control board issue. What might take you a frustrating weekend, we can often diagnose and fix in a couple of hours.

Being named 2024's Best HVAC Company in Cumming, GA didn't happen by accident. It's because we genuinely care about keeping families throughout Metro Atlanta, Cumming, Alpharetta, Milton, Johns Creek, and all of North Georgia warm and safe. Whether that means providing advice or handling the repair ourselves, we're here for you.

Your family's comfort and safety are worth more than the cost of a service call. When winter hits, you want to know your furnace is reliable.
